Nibble Zero - Meshtastic/Meshcore node with Flipper Zero support!

$80.00 USD
$80.00 USD
Sale Sold out
Tax included.
Antenna Type

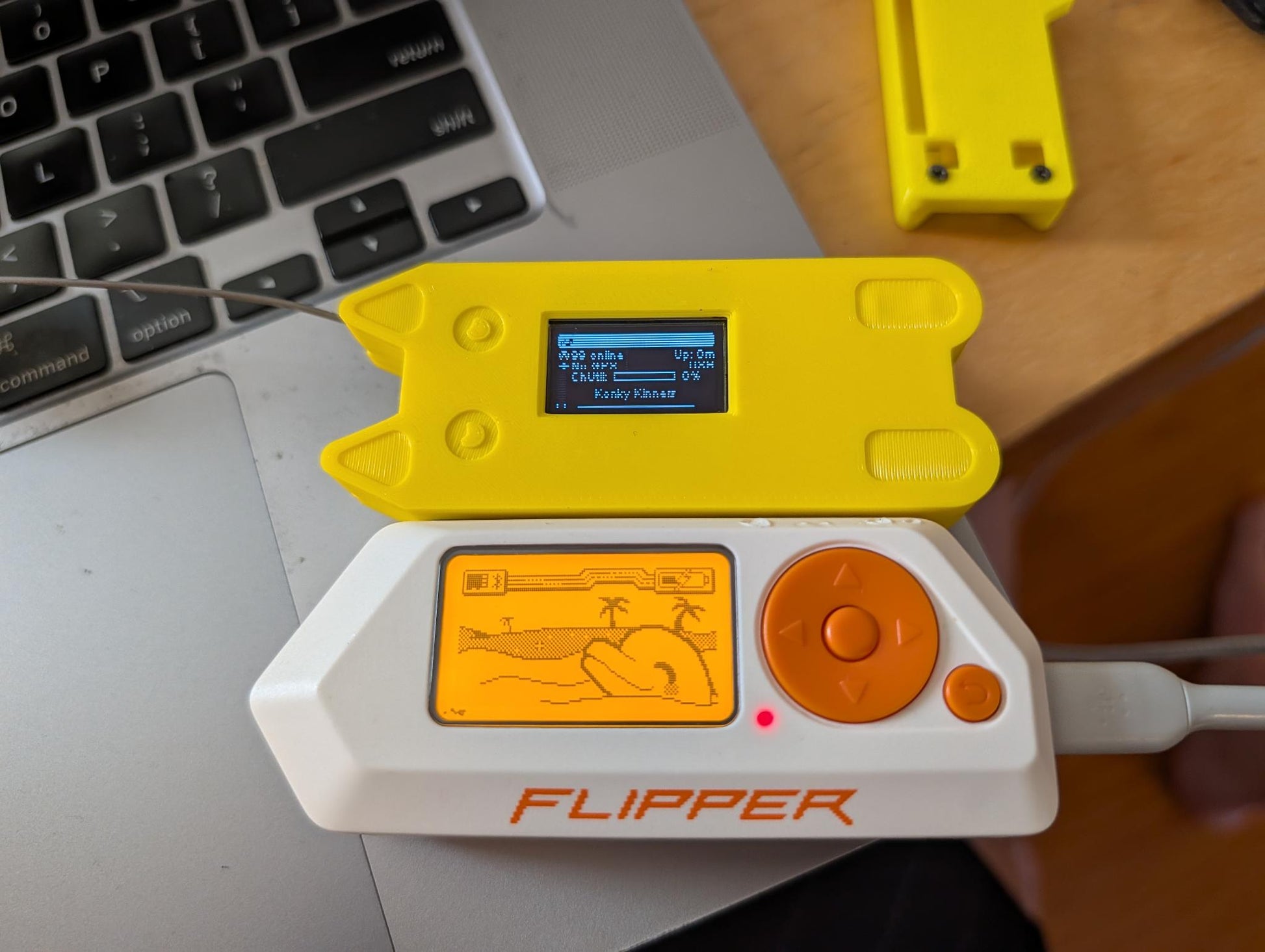

Nibble Zero - A fully featured LoRa Meshtastic/Meshcore node with Flipper Zero support!

With or without a Flipper, the Nibble Zero is a powerful and full-featured LoRa mesh node with support for Meshtastic, Meshcore, and Reticulum.

It’s an upgrade from our previous Nibble Screen Connect board, with added thermal and power protection, and support for the Flipper Zero!

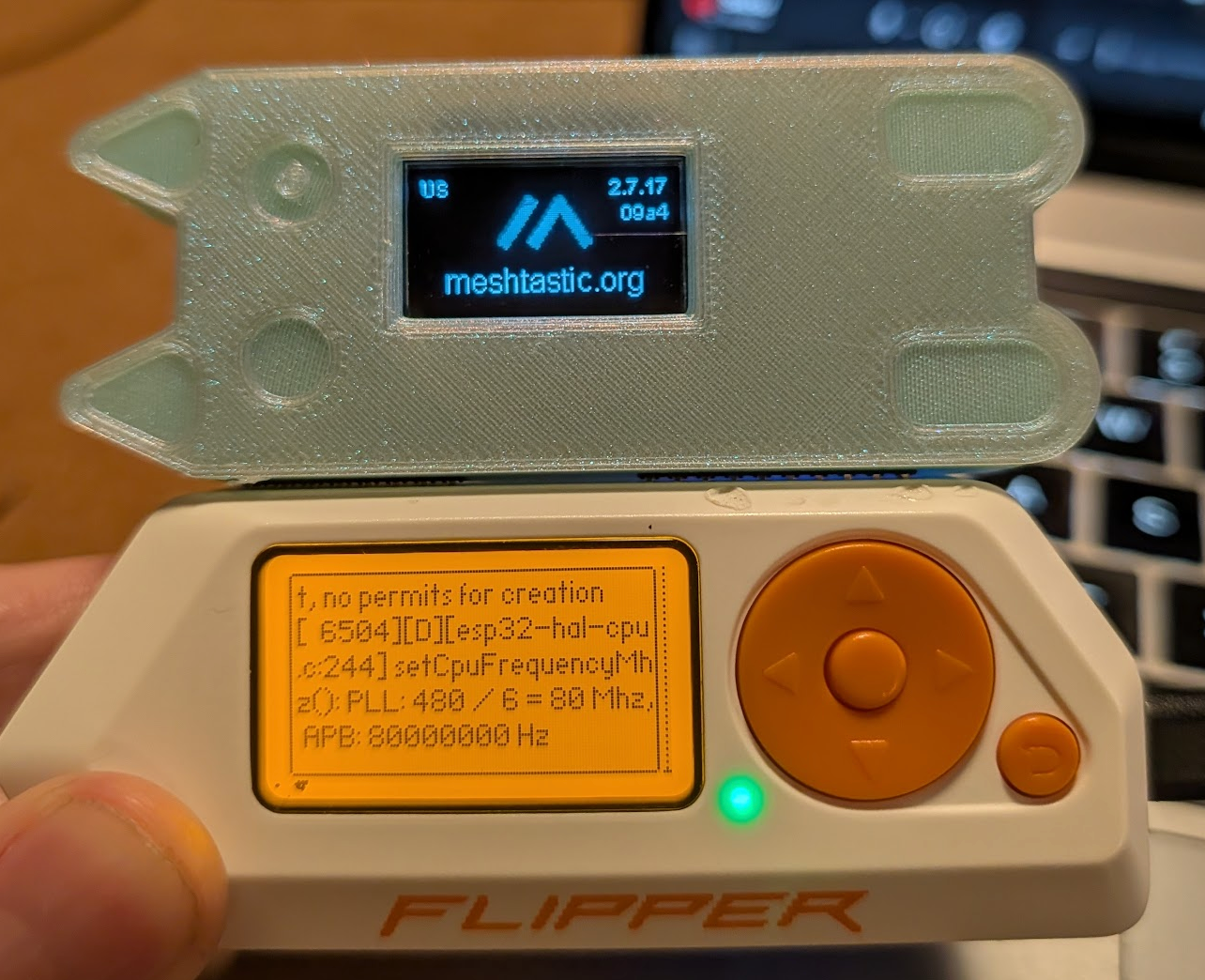

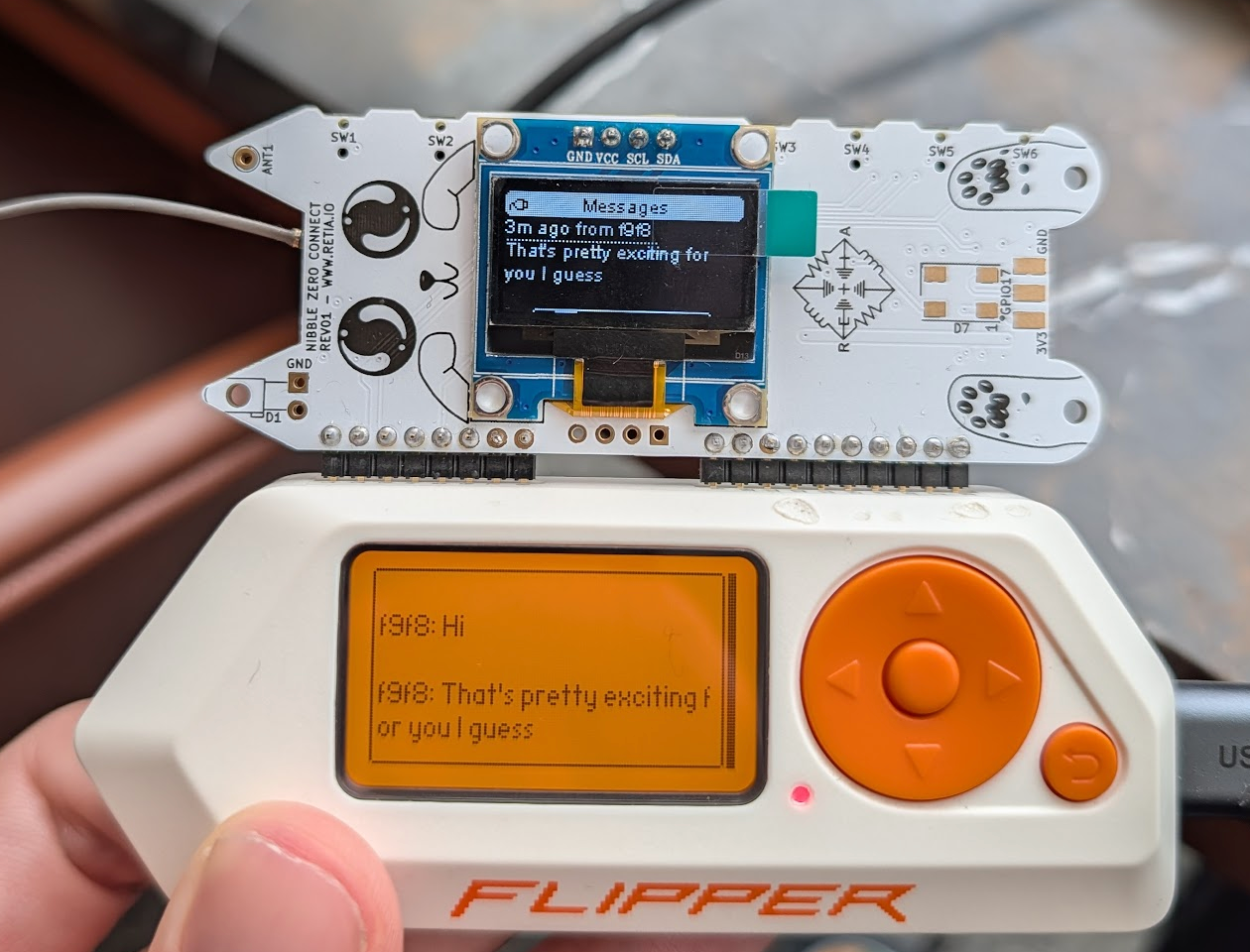

You can learn more from the release post here! A Flipper is not required - it makes an amazing LoRa node on it's own.

Key Features

  • Robust and Powerful: Features the ESP32s3's wide range of features, including built in Wi-Fi, Bluetooth, and native USB.

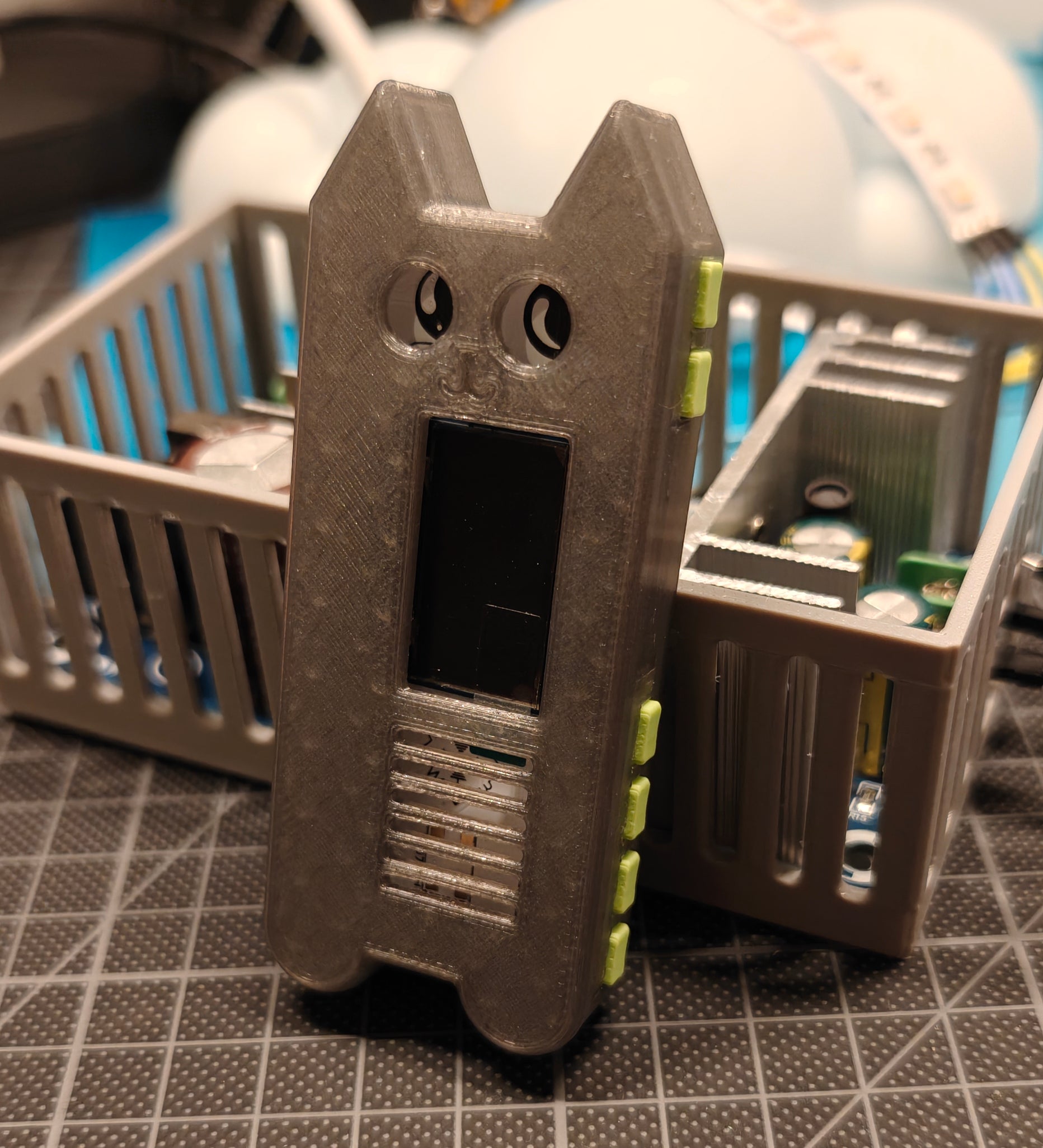

  • 3d printed case - Students attending our classes at Chaos Congress designed and uploaded multiple protective cases for the Nibble Zero:
    https://www.printables.com/model/1561324-nibble-zero-case
    https://www.printables.com/model/1544450-nibble-zero-retia-case

  • Reliable LoRa Communication: Comes with a Seeed studio WIO-sx1262 LoRa radio (programmable for 868MHz or 915MHz), powering encrypted communications over long distances.

  • Customizable Expansion: Offers breadboard-compatible I²C, UART, and SPI pins for easy integration of additional peripherals.

  • Included Environmental Sensor: Includes a BMP280 environmental monitoring sensor add-on for precise tracking of temperature & pressure.

  • Easy To Swap Projects - You can easily switch between Meshtastic and Meshcore by flashing new firmware via the Nugget.dev website, or on the Flipper Zero itself!

Kit Includes:

  • 1x Nibble Zero - Built with a compact form factor for easy low-cost deployment. Comes with mounting holes for case.
  • 1x Protective 3d Printed Case - 3d printed protective case, allowing access to topside buttons and flashing buttons on the back.
  • 1x BMP280 Sensor - Precision environmental sensor with easy I2C connectivity, making data collection simple.

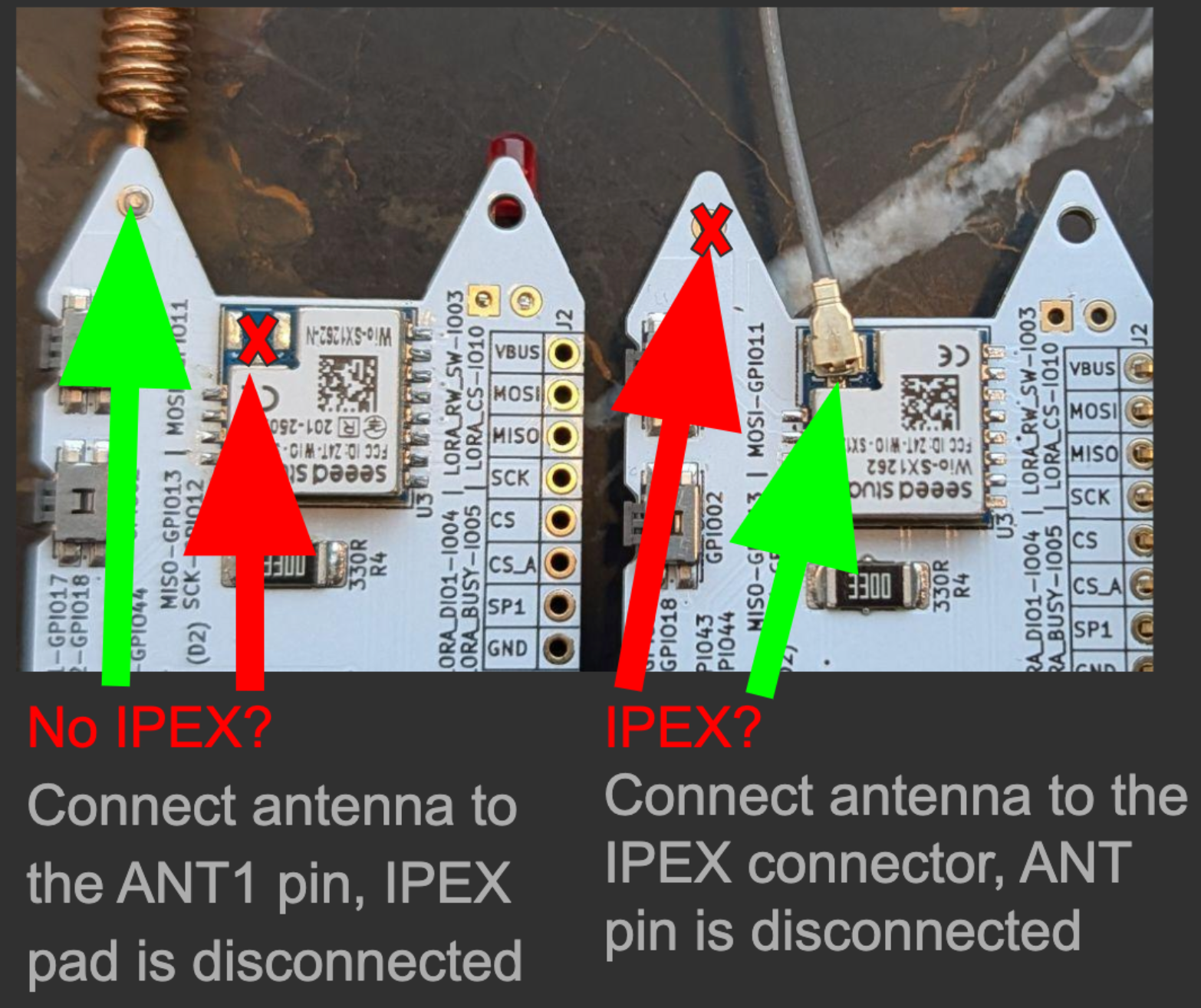

  • 1x IPEX / Coil Antenna - A compact, coil-style or clip-on antenna designed for optimized performance. Subject to availability.
