Open Source Nibble – The DIY Meshtastic Node Kit

The Nibble is a Meshtastic node kit debuted at the 38th Chaos Communication Congress to accompany the talk by Kody Kinzie, which you can watch here: "Hacker's Guide to Meshtastic: Off-Grid, Encrypted LoRa Meshnets for Cheap!"

The Nibble is the perfect beginner-friendly node for learning about Meshtastic, and it allows you to select one of two microcontrollers: the RP2040 and the ESP32s3.

You can buy one in a few ways:

1. PCB Only - Buy just the PCB and source the parts yourself!
2. Unsoldered Kit - Everything you need to solder your own together
3. Fully soldered kit - Fully assembled nibble, flashed and tested

For projects that don't require a Wi-Fi or Bluetooth radio, the RP2040 Nibble provides significantly longer runtime, and is able to run on lower voltages.

If you're planning on working with an iPhone or need Bluetooth/Wi-Fi for your project, stick with the more powerful esp32s3 Nibble instead.

Check out the assembly video here:

Key Features

• Compact & Rugged Design: The PCB fits snugly into a 25mm (1 inch) PVC pipe or 3d printed enclosure, (https://www.thingiverse.com/thing:6461262) making it perfect for outdoor and remote deployments.
• Reliable LoRa Communication: Comes with an RFM95 LoRa radio supporting 868MHz or 915MHz, ensuring encrypted communications over long distances.
• Customizable Expansion: Equipped with dedicated I²C and SPI pads for easy integration of additional peripherals.
• Effortless Firmware Updates: Enjoy a smooth setup with pre‑compiled Meshtastic firmware updated via USB.
• Open Source - The open-source files and software are here: https://github.com/retiallc/nibble

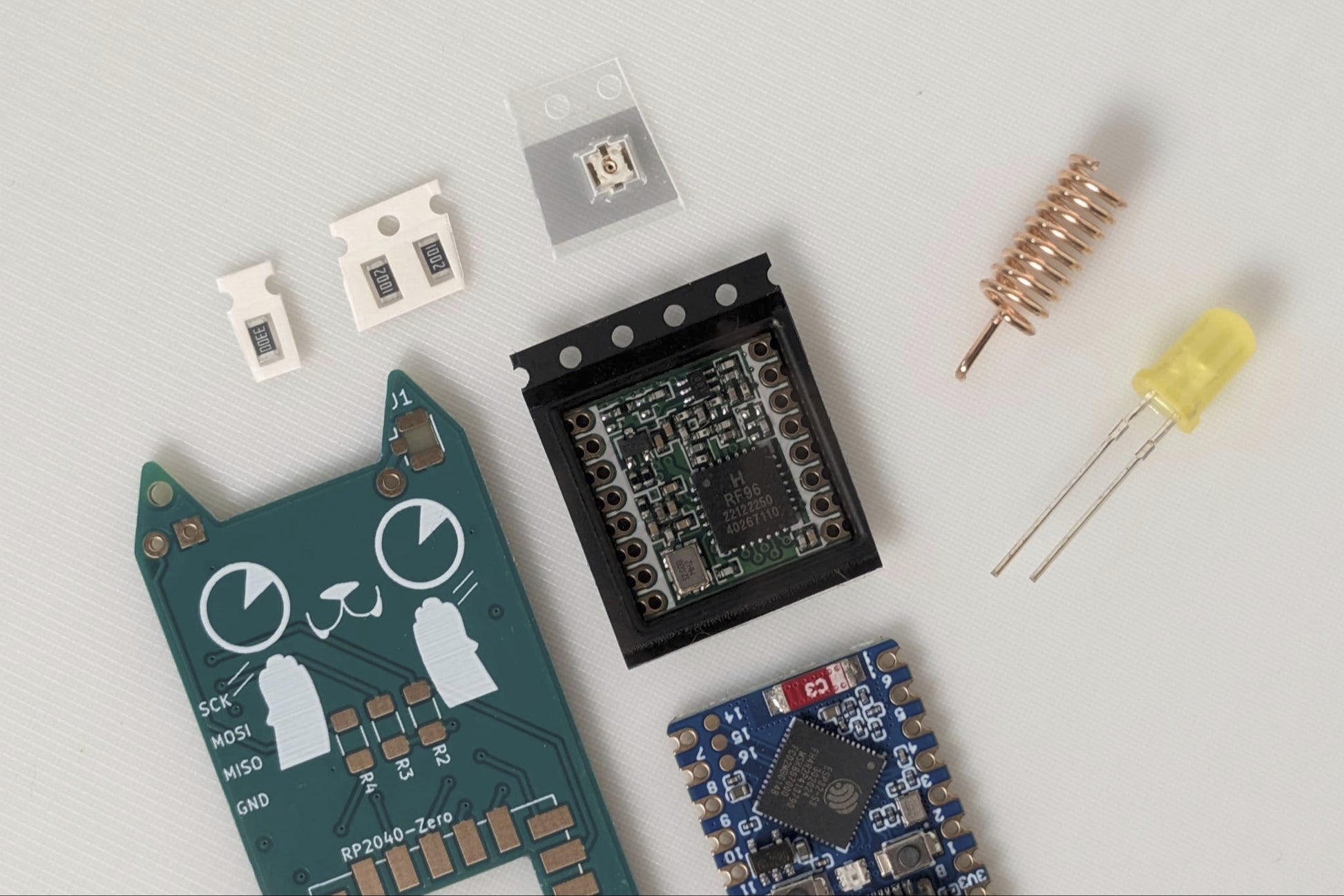

Kit Includes:

• 1x Nibble PCB - Built with a compact form factor for easy low-cost deployment. Comes pre-drilled with mounting holes and dimensions sized for mounting into a 25mm PVC pipe.



• 1x RFM95 LoRa Radio - Reliable, long-range communication supporting 868MHz - 915MHz



• 1x Host Microcontroller RP2040 Zero or ESP32s3 Zero



• 1x LED + Resistors
  Comes with 2x 10kΩ resistors, 1x 330Ω resistor, and 1x LED.



• 1x Wire / Coil Antenna
  A compact, coil-style or wire antenna designed for optimized performance. Subject to availability.

Please note - While Android devices can connect to the RP2040 Nugget directly, iPhones are not able to communicate with USB-only devices plugged into them.

Shipping cost covers transport only. Recipient is responsible for local VAT and customs handling fees.
